'Fatfata'

This specialised product is helpful when user need to perform large job using portable tools and yield a uniform finish.

They are also available in Ø 6mm & 1/4", Spindle mounted and in Surface conditioning materials versions.



Surface Cond. MaterialVery FineMedium
Coarse
Aluminium OxideYesYesYes



Over and above the standard type Abrasive brushes in various forms for specific applications, we also manufacture scores of other types of custom-designed Abrasive products as per customer's requirements.

These products are made as per customer's requirements and desired specifications.

They are available in :

  • Standard
  • Hi S
  • Bristle
    • Plain
    • Aluminium Oxide
    • Silicon Carbide
  • Impregnated
    • Flap ( Foam/Plain)
    • Disc (Foam/Plain)

    and all shapes and sizes as per customer's requirements.

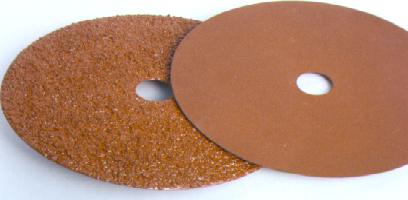

Fiber Disk (Coated)
Fiber Disk-coated are best used for light deburring on flat metal surfaces. Used on right angle (high speed and low speed) power hand tools.

Fiber Disk feature a coarser, tougher more aggressive web construction than our regular surface conditioning discs for heavier deburring, cleaning and finishing applications.

Available in Ø 178



Fiber Disk ( Coated )


Universal Flexible Holder

Our Universal flexible holder is made of durable materials for less critical grinding and surface conditioning applications. Use with SCM Wheels they are very simple to assemble and maintain.

Assembly consists of a suitable Surface
Conditioning Discs, Wheels. An easy way to evaluate the right product, size and grade for your applications.



These are universal type so the whole surface area can be processed by this universal fixture. It can be rotated up to 3000 RPM diameter in 120mm and it works on self clicking principal of Velcro. No adhesive or spanner required.

SCM available in Coarse, Medium & very fine grades. One can also attach in the same Disc impregnated wheel up to 12mm thick and coated paper/cloth with Velcro.

On a particular spot removing one can tighten the nut and work on an angle of aprx. 5deg. or suitable.

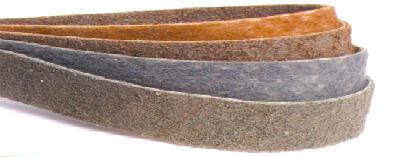

Belt - Surface Cond. Material (non-woven)

These unique surface conditioning belts are used worldwide to finish, polish and buff metal, wood and plastic surfaces.

A reinforced non-woven nylon material spliced into belt form provides a more consistent, more appealing finish in decorative finishing applications. Resists loading and reduces heat build-up, increasing life and improving performance.

No loading, excellent for wood, Aluminium and soft materials.


New surface conditioning belts feature a tougher, more aggressive, non-woven nylon abrasive impregnated web construction than regular surface conditioning belts.

Very FineMedium
Coarse
Surface Cond. (Std)
[Aliminium Oxide]
YesYesYes

Generally, low speeds are recommended for generating very uniform satin finishes, finishing aluminum alloys without lubricants, and woodworking applications. Higher speeds are recommended when removing imperfections prior to buffing. High belt speed will result in faster cut along with finer finishes.




Coated Disk


Coated Disk

Coated Disk feature a coarser, tougher more aggressive web construction than our regular surface conditioning discs for heavier deburring, cleaning and finishing applications.
